Sleeved Plug Valves

Product Code: 10004

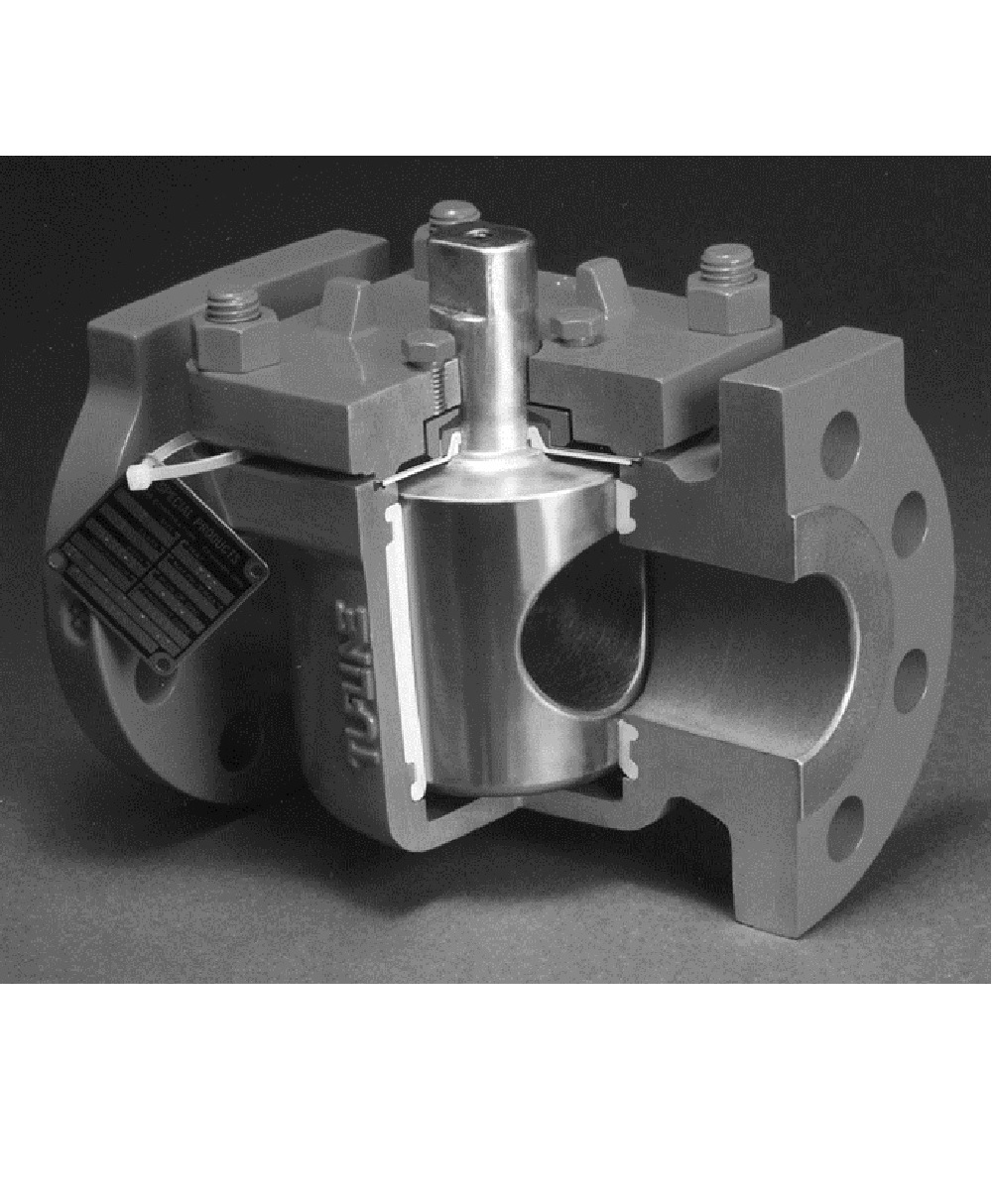

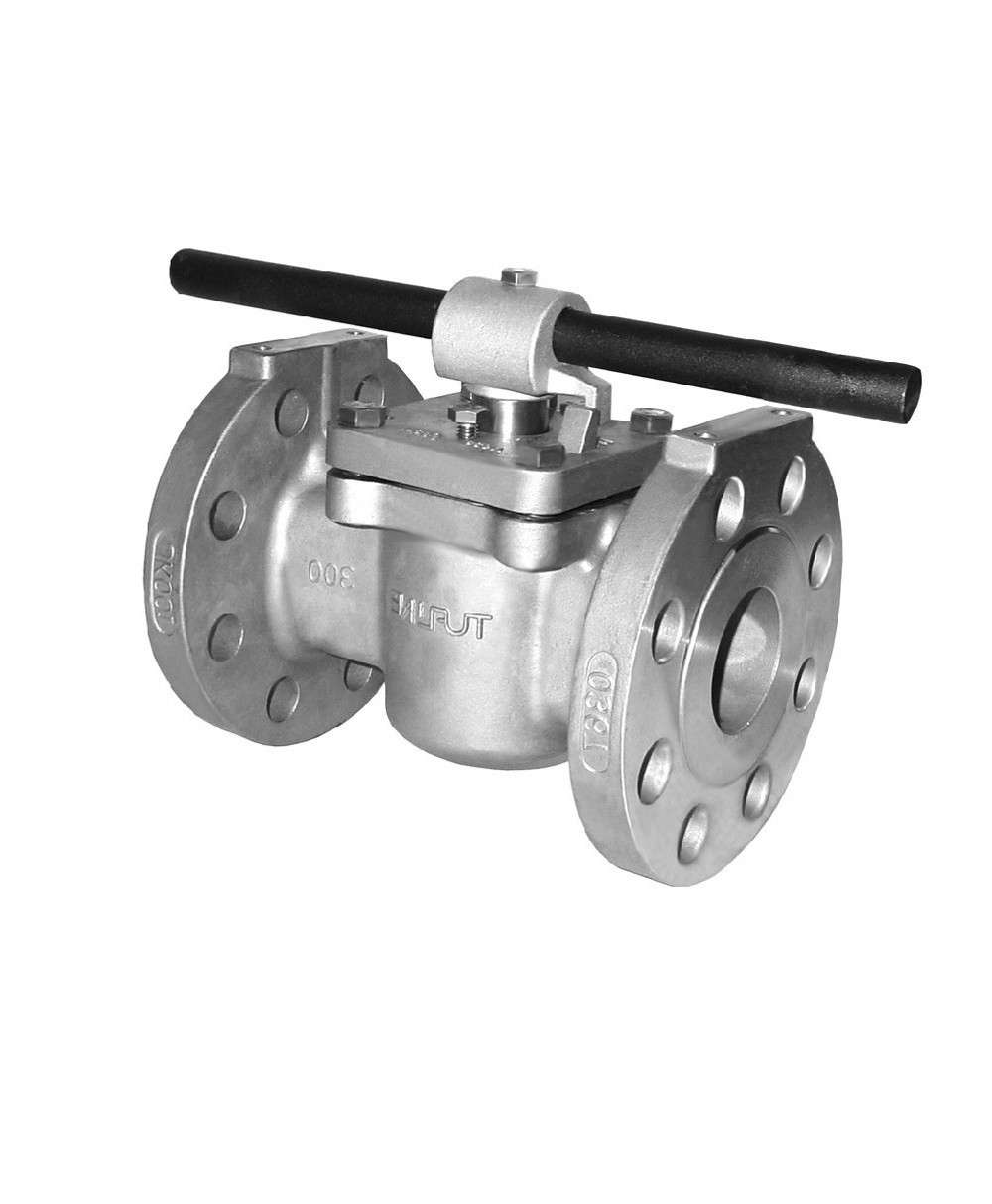

XOMOX® Sleeved plug valves are non-lubricated quarter-turn valves that achieve sealing through the use of a compressible sleeve as a sealing member. In many applications they operate virtually maintenance free for decades.

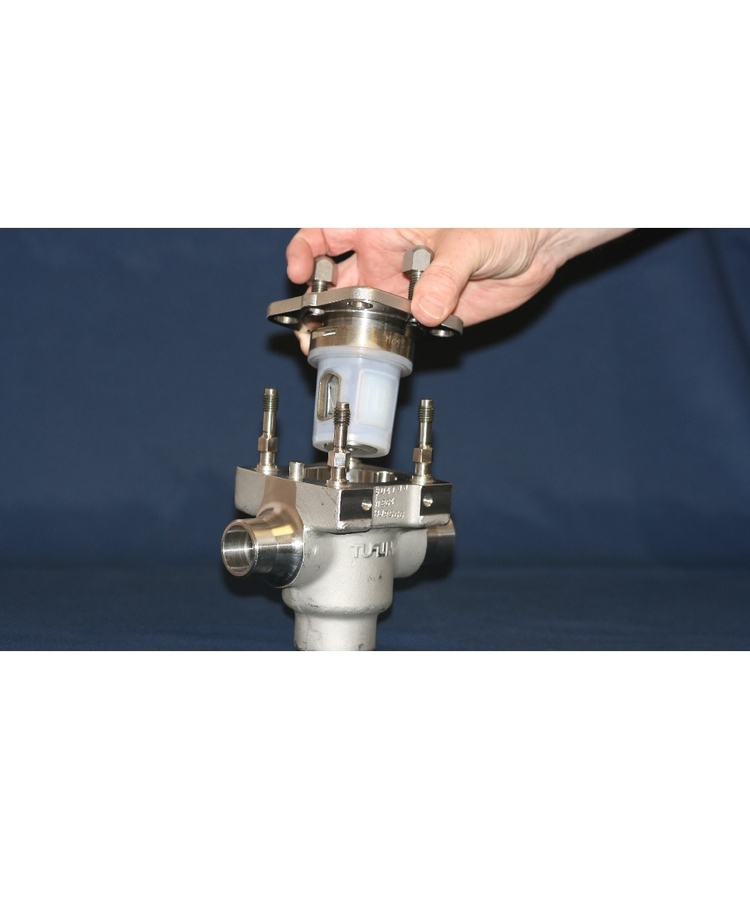

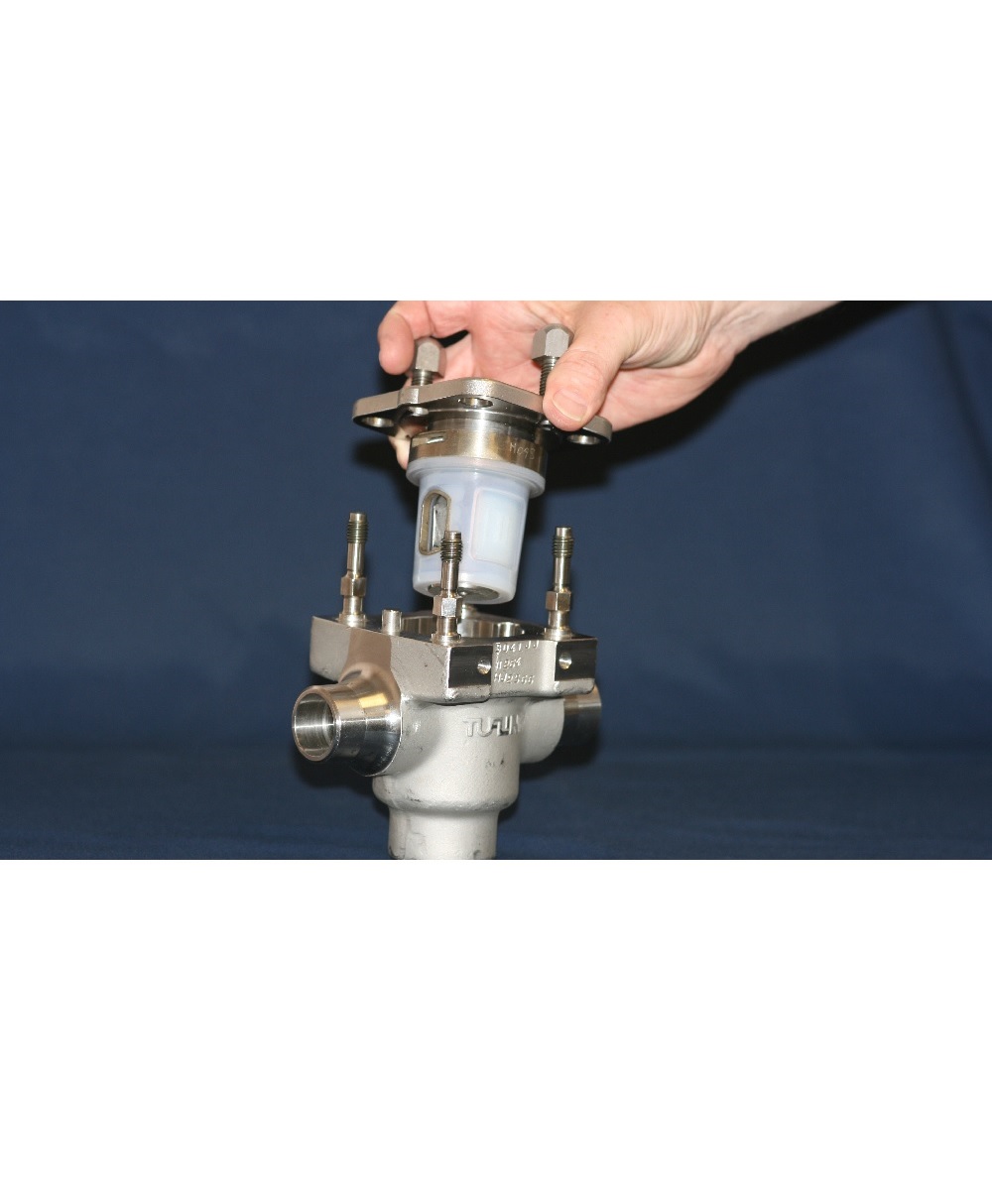

The Easi-Sleeve provides all of the features and benefits of the conventional sleeved plug valve with the additional benefit of unrivalled ease of maintenance through single module design of all inner components. Not only can this valve be maintained extremely quickly, but it can also be adapted for remote or semi-remote applications. These valves are particularly suited for use in nuclear fuel reprocessing plants, vitrification plants etc.

  • Sizes 1/2" thru' 24"
  • Available in ANSI 150 thru 600 and DIN PN10 thru PN100
  • Flanged, screwed and welded ends
  • Available in carbon; stainless steel amd special alloys
  • Sleeve materials are PTFE; RPTFE; T-475; T-600; PFA; Xomox 7 and UHMWPE
  • Multi-port configurations
